Camera Mainboard Assembly And Testing
Camera Mainboard Assembly And Testing is a PCBA production reference project from ULIKE. The case highlights SMT placement, DIP soldering, testing, conformal coating, BGA handling, and turnkey material coordination, with original process notes covering SDI转HDMI摄像头模板方案生产销售.
Ask About Similar ProjectsProcess notes
- SDI转HDMI摄像头模板方案生产销售
- 1080P：1125条垂直扫描线，1080条可见垂直扫描线16：9，分辨率为1920×1080逐行扫描，专业格式，行频为67.5KHz。
- HDMI高清晰度多媒体接口
- SDI标准数据接口
- UC2500
- 规格：38mmX38mm
Delivery attention
- Confirm the approved BOM before purchasing, especially IC, connector and BGA alternatives.
- Keep one confirmed sample as the golden sample for programming, function test and appearance comparison.
- For repeat orders, keep the same stencil, fixture, test method and packing label requirements.
Project record
ULIKE handled this camera mainboard assembly and testing project with attention to board construction, component placement accuracy, soldering stability, and functional verification. Key technical notes include: SDI转HDMI摄像头模板方案生产销售; 1080P：1125条垂直扫描线，1080条可见垂直扫描线16：9，分辨率为1920×1080逐行扫描，专业格式，行频为67.5KHz。; HDMI高清晰度多媒体接口; SDI标准数据接口; UC2500; 规格：38mmX38mm; 双面贴片; SMD0402.
The work is suitable for OEM and ODM customers that need a reliable partner from engineering review through production handoff.

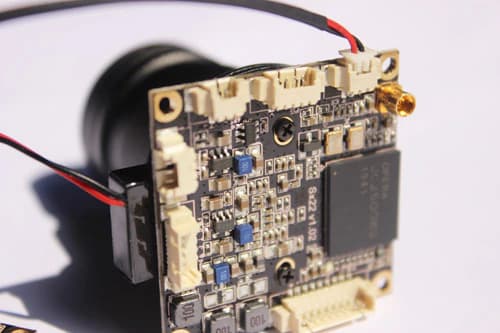

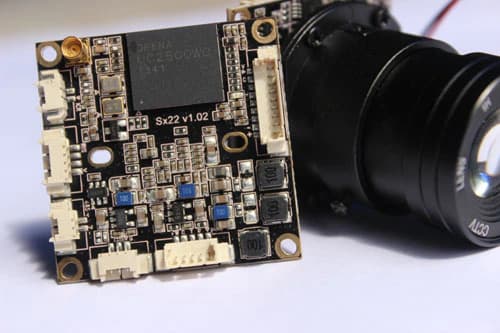

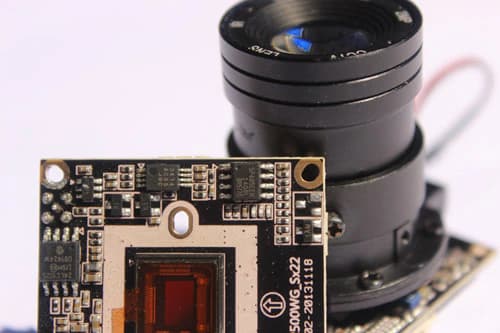

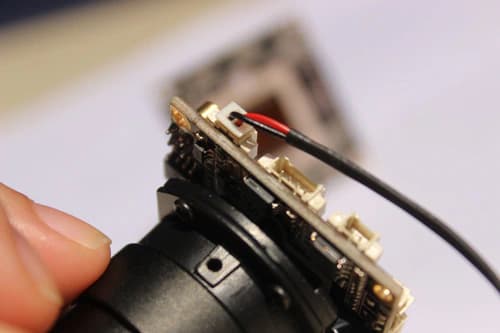

Image record
Photos are kept as production and project references.
