Featured cases
A quick entry into representative PCBA, CAD and equipment projects.
PCBA Showcase
PCBA Showcase is a PCBA production reference project from ULIKE. The case highlights SMT placement, DIP soldering, testing, conformal coating, BGA handling, and turnkey material coordination, with original process notes covering 视频通讯板程序烧录，功能测试.
High-speed PCB Design In PADS
High-speed PCB Design In PADS is a PCB engineering reference project from ULIKE. The case highlights schematic review, layout optimization, stack-up planning, impedance-aware routing, and manufacturability checks, with original process notes covering 24小时快速交货.

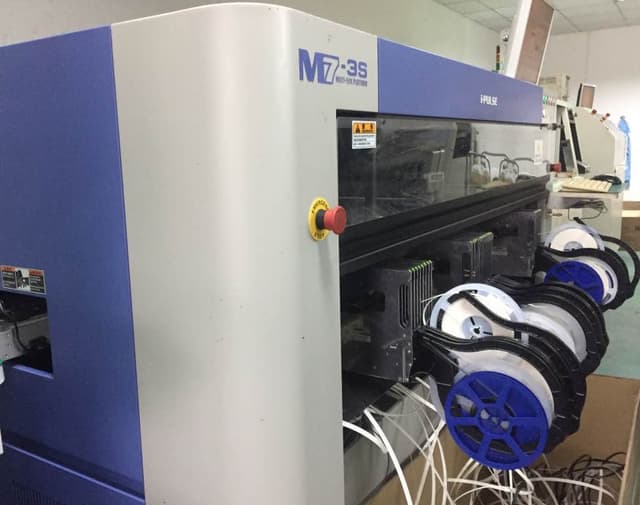

SMT Production Equipment
SMT Production Equipment is a equipment and assembly reference project from ULIKE. The case highlights line capacity, equipment configuration, finished assembly, testing, packaging, and mold support, with original process notes covering YAMAHA IPLUS M7 2台.
PCBA Manufacturing Cases
Turnkey board manufacturing, assembly, testing, and quality-controlled delivery.

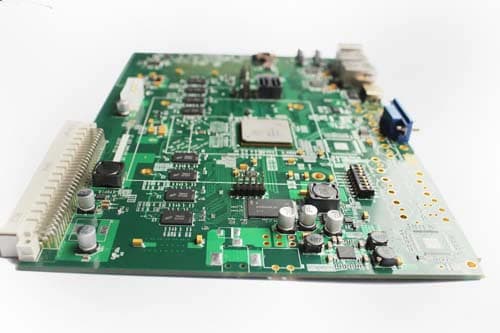

PCBA Showcase
- 视频通讯板程序烧录，功能测试
- PCB板厚2.0mm
- 12层板
- BGA球距：0.3mm
- SMD：0201
- 双面贴片
Camera Mainboard Assembly And Testing
- SDI转HDMI摄像头模板方案生产销售
- 1080P：1125条垂直扫描线，1080条可见垂直扫描线16：9，分辨率为1920×1080逐行扫描，专业格式，行频为67.5KHz。
- HDMI高清晰度多媒体接口
- SDI标准数据接口
- UC2500
- 规格：38mmX38mm

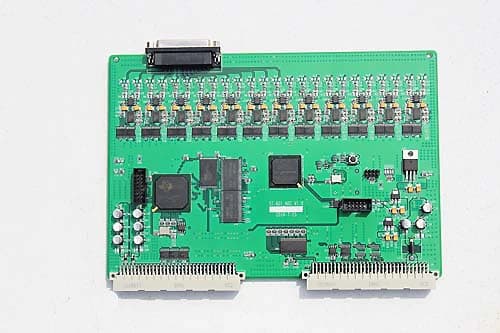

Waterproof Treatment For Power Communication Board
- 电力通讯智能版防水处理（喷涂三防漆）
- 板厚1.6mm 四层板
- SMD：0402
- 双面贴片
- BGA球间距0.3mm
- 防静电袋包装
More cases
11 additional project records- Anti-copy IC Marking Removal PCBAQFP IC 0.4mm间距双面贴片，防盗版IC除字
- High-power IoT Dimming Control Board物联网大功率调光板 / 规格83*210mm
- Android TV Box Mainboard机顶盒主板 / BGA植球
- DIP Wave Soldering Power BoardX光机设备电源板加工，插件波峰焊接！ / 板厚2.00mm
- Medical Testing Equipment Power Module我们使用工具德国原装进口willer烙铁 / 要求锡厚度：0.3mm（10mm*800mm）、
- Dual-process Red Glue And Solder Paste PCBA红胶，锡膏双工艺产品展示 / 板厚1.6
- Automation Equipment Control Module自动化设备控制模组 / 板厚1.6、
- Fine-pitch BGA And WiFi Module AssemblyBGA 0.4mm间距模块焊接加工,wifi模组
- Double-sided BGA HDMI Industrial Control BoardBGA双面贴片。电子爱好DIY演示裸板。HDMI工控板
- Single-sided And Double-sided FPC SMTQFN芯片贴片（苹果解密SIM卡贴） / 手机触摸板贴片
- Hotel Smart Switch Complete Solution宾馆、酒店、别墅、家用物联网控制开关，整套方案的包工包料生产 / 附图是三位开关控制板
PCB Design Cases
PCB design, layout, stack-up, impedance, and manufacturability engineering references.

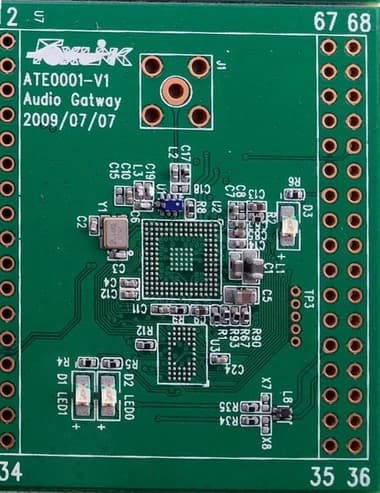

High-speed PCB Design In PADS
- 24小时快速交货
- 先进技术产品
- 高层背板、HDI板、高频板、高TG板、无卤素板、挠性及刚挠板等高新技术产品
- 16层PCB，2mil线宽间距
- 产品与技术应用

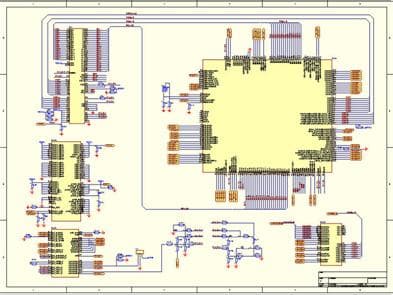

DXP Schematic And Layout Design
- 电源管理原理图设计（DXP2004）
- USB3.0转接板layout(4层阻抗板)
- 设备通讯连接

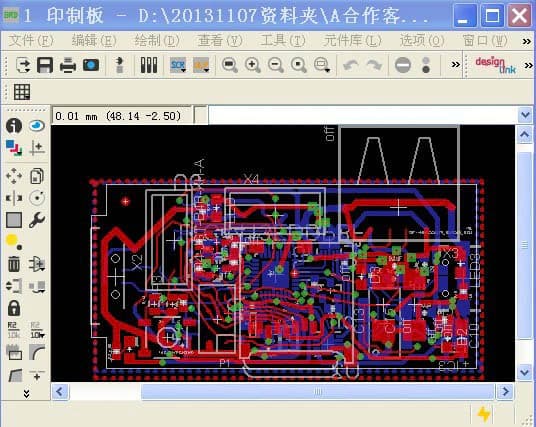

Eagle Layout PCB Design
- 基材: FR-4 高TG
- 尺寸：135.26mm*112.70mm
- 表面处理: 沉金
- 外层线宽/线距: 3.0/3.80mil
- 板厚: 2.80 mm
- 过孔孔径: 0.250 mm
More cases
10 additional project records- Single-sided PCB Board单面板 / 单层展示
- Multilayer PCB Board多层板 / 快板可制
- High-frequency PCB Board1表面工艺：喷锡、无铅喷锡、沉金、全板镀金、插头镀金、化学沉锡（银）、抗氧化（OSP）蓝胶、碳油 / 2多层板能批量生产2层至10层，6层和8层HDI板子可小量生产。
- 4.00mm Special-shaped PCB Board异形板，TG170，8层板 / 2多层板能批量生产2层至10层，6层和8层HDI板子可小量生产。
- 4.00mm Special-shaped PCB Board Sample异形板，TG170，8层板
- Reverse Engineering PCB DesignPCB 反推原理图，优化PCB设计。BOM（材料清单）制作
- Layered PCB Stack-up DesignPCB 时钟频率超过5MHZ时或信号上升小于5ns时，一般需要使用多层板设计
- Single-sided And Double-sided FPC Manufacturing单双面FPC制作，贴片焊接
- PowerPCB Optical Communication Board8层板 光纤视频通讯主板
- PCBA Design Sample8层板 光纤视频通讯主板
Equipment And Assembly Cases
Production equipment, finished assembly, tooling, and factory capability references.
