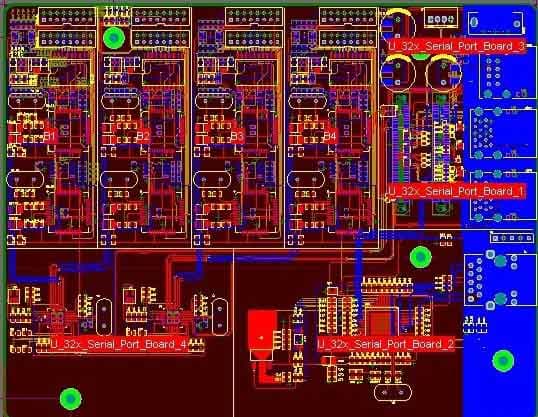

PowerPCB Optical Communication Board
PowerPCB Optical Communication Board is a PCB engineering reference project from ULIKE. The case highlights schematic review, layout optimization, stack-up planning, impedance-aware routing, and manufacturability checks, with original process notes covering 8层板 光纤视频通讯主板.
Ask About Similar ProjectsProcess notes
- 8层板 光纤视频通讯主板
Delivery attention
- Provide mechanical limits, connector positions and keep-out areas before layout starts.
- Confirm stack-up, impedance and key signal requirements early to reduce board revision.
- Before fabrication, review Gerber, drill, paste mask and assembly drawings together.
Project record
ULIKE used this powerpcb optical communication board case to demonstrate practical PCB design support for manufacturable layouts, faster prototype cycles, and engineering documentation. Key technical notes include: 8层板 光纤视频通讯主板.
The work is suitable for OEM and ODM customers that need a reliable partner from engineering review through production handoff.
Image record
Photos are kept as production and project references.
