PCBA Showcase
PCBA Showcase is a PCBA production reference project from ULIKE. The case highlights SMT placement, DIP soldering, testing, conformal coating, BGA handling, and turnkey material coordination, with original process notes covering 视频通讯板程序烧录，功能测试.
Ask About Similar ProjectsProcess notes
- 视频通讯板程序烧录，功能测试
- PCB板厚2.0mm
- 12层板
- BGA球距：0.3mm
- SMD：0201
- 双面贴片
Delivery attention
- Confirm the approved BOM before purchasing, especially IC, connector and BGA alternatives.
- Keep one confirmed sample as the golden sample for programming, function test and appearance comparison.
- For repeat orders, keep the same stencil, fixture, test method and packing label requirements.
Project record
ULIKE handled this pcba showcase project with attention to board construction, component placement accuracy, soldering stability, and functional verification. Key technical notes include: 视频通讯板程序烧录，功能测试; PCB板厚2.0mm; 12层板; BGA球距：0.3mm; SMD：0201; 双面贴片; IC多于15种，CHIP料种类多于150种，BGA 12颗; 防静电包装.
The work is suitable for OEM and ODM customers that need a reliable partner from engineering review through production handoff.

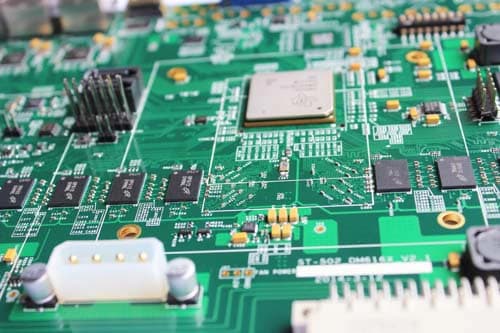

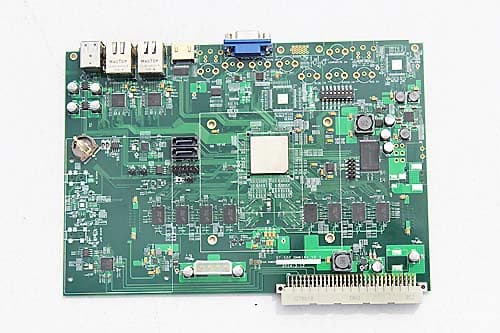

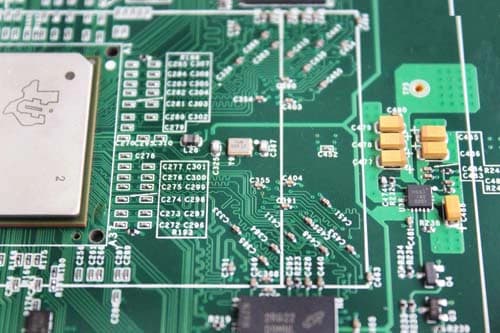

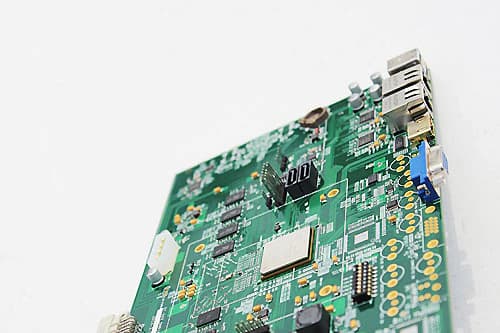

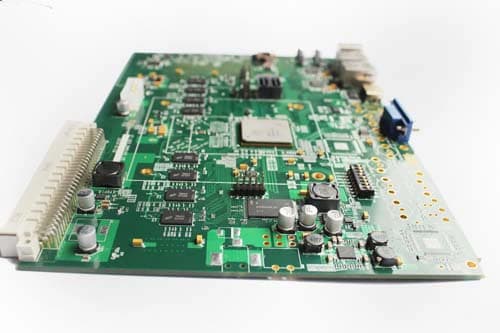

Image record
Photos are kept as production and project references.
