Eagle Layout PCB Design
Eagle Layout PCB Design is a PCB engineering reference project from ULIKE. The case highlights schematic review, layout optimization, stack-up planning, impedance-aware routing, and manufacturability checks, with original process notes covering 基材: FR-4 高TG.
Ask About Similar ProjectsProcess notes
- 基材: FR-4 高TG
- 尺寸：135.26mm*112.70mm
- 表面处理: 沉金
- 外层线宽/线距: 3.0/3.80mil
- 板厚: 2.80 mm
- 过孔孔径: 0.250 mm
Delivery attention
- Provide mechanical limits, connector positions and keep-out areas before layout starts.
- Confirm stack-up, impedance and key signal requirements early to reduce board revision.
- Before fabrication, review Gerber, drill, paste mask and assembly drawings together.
Project record
ULIKE used this eagle layout pcb design case to demonstrate practical PCB design support for manufacturable layouts, faster prototype cycles, and engineering documentation. Key technical notes include: 基材: FR-4 高TG; 尺寸：135.26mm*112.70mm; 表面处理: 沉金; 外层线宽/线距: 3.0/3.80mil; 板厚: 2.80 mm; 过孔孔径: 0.250 mm.
The work is suitable for OEM and ODM customers that need a reliable partner from engineering review through production handoff.

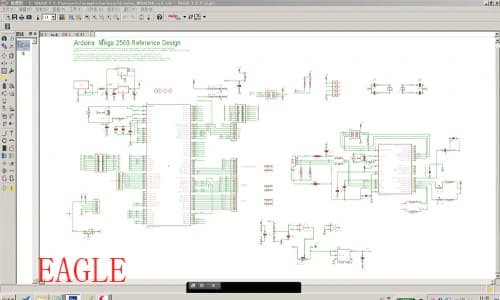

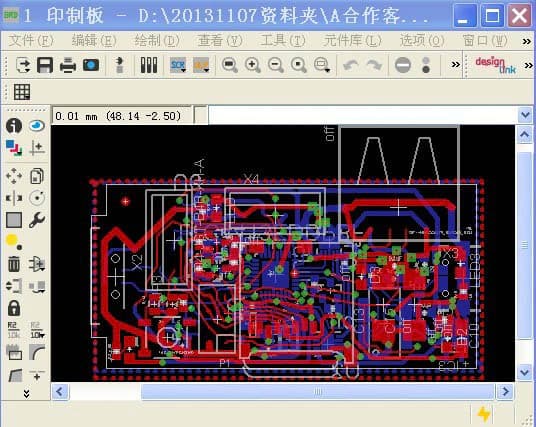

Image record
Photos are kept as production and project references.
