High-power IoT Dimming Control Board
High-power IoT Dimming Control Board is a PCBA production reference project from ULIKE. The case highlights SMT placement, DIP soldering, testing, conformal coating, BGA handling, and turnkey material coordination, with original process notes covering 物联网大功率调光板.
Ask About Similar ProjectsProcess notes
- 物联网大功率调光板
- 规格83*210mm
- 板厚1.6mm
- 插件焊接点
- SM0402
- 2ohz铜厚功率器件双面插件焊接
Delivery attention
- Confirm the approved BOM before purchasing, especially IC, connector and BGA alternatives.
- Keep one confirmed sample as the golden sample for programming, function test and appearance comparison.
- For repeat orders, keep the same stencil, fixture, test method and packing label requirements.
Project record
ULIKE handled this high-power iot dimming control board project with attention to board construction, component placement accuracy, soldering stability, and functional verification. Key technical notes include: 物联网大功率调光板; 规格83*210mm; 板厚1.6mm; 插件焊接点; SM0402; 2ohz铜厚功率器件双面插件焊接.
The work is suitable for OEM and ODM customers that need a reliable partner from engineering review through production handoff.

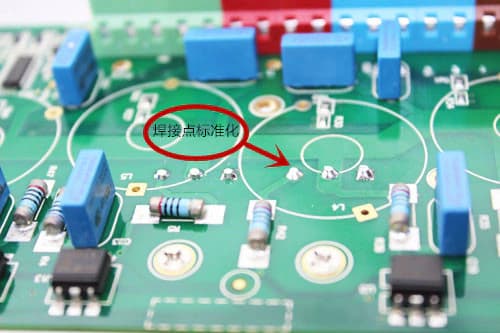

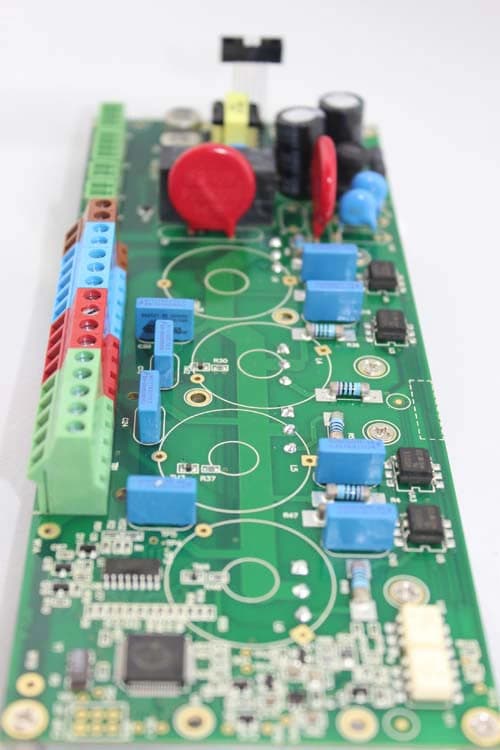

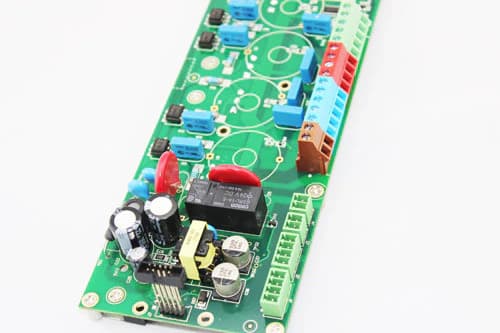

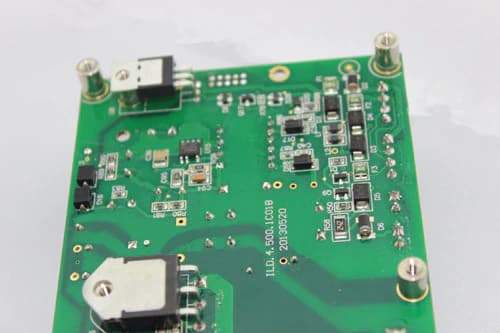

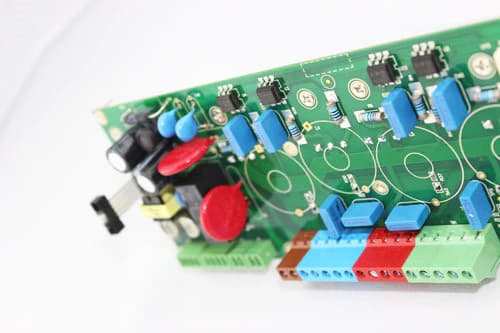

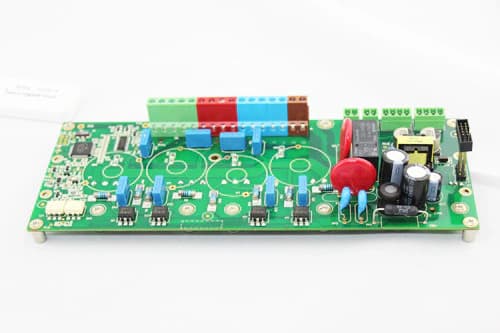

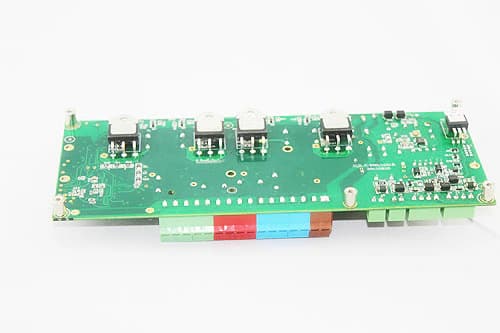

Image record
Photos are kept as production and project references.
